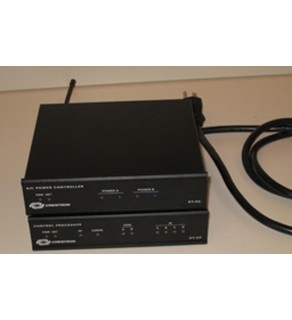

CRESTRON ST-CP

CRESTRON CONTROL PROCESSOR

Communications
Radio Frequency (RF); 1-way; 434MHz
Communication Ports
RF (1) 50 ohms BNC connector; for use with antenna (included) alone or with standard 50 ohm extension cable (not included)
NET (1) 6-wire RJ-type connector; for expansion to SmarTouch peripherals, Cresnet devices, touchpanels and for programming the SmarTouch touchpanel
PC (1) 6-wire RJ-type connector for communicating to a PC computer when programming
COM A - B (2) 6-wire RJ-type connectors for controlling audio/visual devices via independent RS-232 ports (data rate up to 38,400 baud)
IR OUT A - D (4) RA, 3.5mm mini phone jacks for controlling additional audio/visual devices via IR, serial format; requires STIRP IR probe(s). The IR port can be used with TTL compatible serial interfaces/devices
LED Indicators
PWR Indicates 12 or 24VDC power supplied to unit
NET Indicates command activity to Cresnet and SmarTouch peripherals or from PC
RF Indicates commands received from user interface (i.e., touchpanel)
ERROR Indicates programming problem
COM A - B Indicates communications occurring from unit's COM ports
IR A - D Indicates commands transmitted from unit's IR ports
Power Requirements
External, 12VDC, 500mA AC adapter; included
Enclosure
Black metal; stackable
Rack Mountable
With ST-RMK rack mount kit, not included
Dimensions
1 rack unit high, 1/2 rack unit wide
1.7" / 4.32cm (H) x
7.07" / 17.95cm (W) x
6.32" / 16.06cm (D)
Weight
2.0lbs (0.95Kg)
