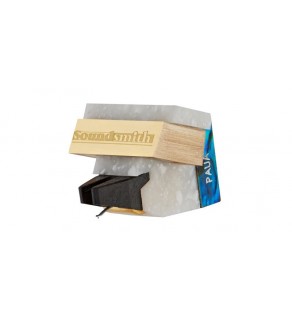

SoundSmith PAUA Zoom

SoundSmith PAUA

Be the first to review this product

SKU: PAUA
Specifications

Cartridge Type
Fixed Coil
Stylus Type
Contact Line
Output

Low

Output Voltage

.4 mV

Available As Dual Coil Mono

Yes

Additional Specifications



Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Loading: ≥ 470 Ω

Availability: In stock

Product Description

    Details

    The Paua: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature. The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Featuring ultra-low internal moving mass, a specialized telescoping alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua will add a unique quality of warmth and smoothness to any analog system without leaving behind all the critical details you want and need to hear. The Paua reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures. We have accomplished a work of art with the Paua design, resulting in an unparalleled and sublime performance. Also available in dual-coil mono.
