SoundSmith Hyperion MK II Zoom

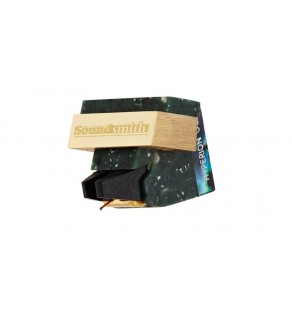

SoundSmith Hyperion MK II

Be the first to review this product

SKU: Hyperion
SoundSmith Hyperion MK II
Please phone (888)850-4366 for pricing.



Specifications

Cartridge Type
Fixed Coil
Stylus Type
Contact Line O.C. Contact Line
Output

Low

Output Voltage

0.4 mV

Available As Dual Coil Mono

Yes

Additional Specifications



Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature
Selected Diamond shapes: CL or Optimized (OCL)
Cantilever: Hand formed/treated selected Cactus "Spine"
Recommended tracking force: 1.8 to 2.2 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance) (LT) | 12 μm/mN vertical | 7 μm/mN horizontal
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >36 dB (LT: > 34dB), 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo) <1.0 dB (Mono)
Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Loading: ≥ 470 Ω

Availability: In stock

Product Description

    Details

    The HYPERION MKII is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at HiFi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann‘s radical design utilizes an actual “cactus spine” for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Also available in a Dual Compliance Design for older Linear Tracking turntables as the HYPERION LT. HYPERIONS are offered with a choice of CL or OC-CL stylis.
