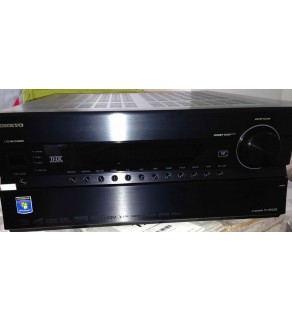

Barely used, with audessey mic
Amplifier Section
Power Output
Front L/R 145 W + 145 W (8 ohms, 20 Hz20 kHz, 0.05%, 2 channels driven, FTC)
Center 145 W (8 ohms, 20 Hz20 kHz, 0.05%, 2 channels driven, FTC)
Surround L/R 145 W + 145 W (8 ohms, 20 Hz20 kHz, 0.05%, 2 channels driven, FTC)
Surround Back L/R 145 W + 145 W (8 ohms, 20 Hz20 kHz, 0.05%, 2 channels driven, FTC)
Front High/ Wide 145 W + 145 W (8 ohms, 20 Hz20 kHz, 0.05%, 2 channels driven, FTC)
Dynamic Power 400 W (3 ohms, 1 ch)
300 W (4 ohms, 1 ch)
180 W (8 ohms, 1 ch)
THD (Total Harmonic Distortion) 0.05% (Rated power)
Damping Factor 60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance 200 mV/47 k-ohms (Line)
2.5 mV/47 k-ohms (Phone MM)
Output Level and Impedance 200 mV/470 ohms
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz100 kHz/+1 dB, -3 dB (Direct mode)
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 110 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker Impedance 4 ohms16 ohms or 6 ohms16 ohms
Video Section
Input Sensitivity/Output Level and Impedance
Video 1 Vp-p/75 ohms (Component and S-Video Y)
0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
0.28 Vp-p/75 ohms (S-Video C)
1 Vp-p/75 ohms (Composite)
Component Video Frequency Response 5 Hz100 MHz (-3 dB)
Tuner Section
Tuning Frequency Range
FM 87.5 MHz107.9 MHz
AM 530 kHz1,710 kHz
FM/AM/SIRIUS Preset Memory 40 stations
General
Power Supply AC 120 V, 60 Hz
Power Consumption 11.6A
Dimensions (W x H x D) 17 1/8" x 7 13/16" x 18 1/4" br>(435 x 198.5 x 463.5 mm)
Weight 55.1 lbs. (25.0 kg)
