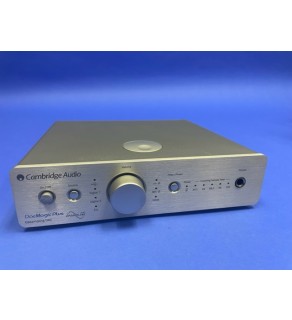

Cambridge Audio DAC Magic Plus ($325.00)
Cambridge Audio DAC Magic Upsampling DAC ($299.95)
DIGITAL TO ANALOGUE CONVERTERS
Dual Wolfson WM8740 24-bit DACs
DIGITAL FILTER
Analog Devices ADSP21261 DSP; upsampling to 24-bit/384kHz
ANALOGUE FILTER
2-Pole Dual Differential Bessel Double Virtual Earth Balanced
FREQUENCY RESPONSE
20Hz to 20kHz (±0.1dB)*
THD @ 1KHZ 0DBFS
<0.001% 24-bit
THD @ 1KHZ -10DBFS
<0.001%
THD @ 20KHZ 0DBFS
<0.002%
SIGNAL TO NOISE RATIO
-112dBr
TOTAL CORRELATED JITTER
<130pS
CROSSTALK @ 1KHZ
< -130dB
CROSSTALK @ 20KHZ
< -112dB
OUTPUT IMPEDANCE
<50 Ohms
MAX. OUTPUT LEVEL (UNBALANCED)
2.1V rms
MAX. OUTPUT LEVEL (BALANCED)
4.2V rms (2.1V per phase)
DIGITAL INPUT WORD WIDTHS SUPPORTED
16-24bit
DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz**, 192kHz
AUDIO OUTPUT UPSAMPLING
Fixed 24-bit/384kHz
MAX POWER CONSUMPTION
12W
DIMENSIONS (HXWXD)
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
WEIGHT
1.2kg/2.6lbs
HEADPHONE OUTPUT
THD
at 1kHz 0dBFS 24-bit signal with 22kHz low pass filter = 0.001% at 20khz 0dBFS 24-bit signal with 80kHz low pass filter = 0.003%
S/N
-111dBrA
FREQUENCY RESPONSE
10Hz - 100kHz
RECOMMEND HEADPHONE IMPEDANCE
32 Ohm to 600 Ohm
**
Digital 1 & 2 Inputs only
