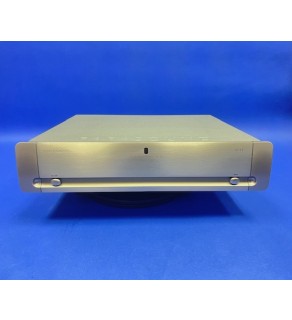

Parasound JC3 + Phono Preamplifier Silver

Input Sensitivity at 1 kHz MM: 4mV for 1V output
MC: 600µV for 1V output
Total Gain MM: 48dB
MC: 64dB

Frequency Response 20Hz – 20kHz, +/- 0.2dB
Total Harmonic Distortion < 0.01% at 1kHz
Signal to Noise Ratio, MM > 87dB, input shorted, IHF A-weighted
> 78dB, input shorted, unweighted
Signal to Noise Ratio, MC > 87dB, input shorted, IHF A-weighted
> 67dB, input shorted, unweighted
Interchannel Crosstalk 72dB at 1kHz
Input Impedance MM: 47kΩ
MC: 50 – 550Ω variable, 47kΩ fixed
Output Impedance Unbalanced: < 100Ω
Balanced: < 100Ω per legAC Power Requirement
Standby: 1 watt Power On: 12 watts
115 or 230 VAC 50 - 60 Hz
(Selected on Chassis Bottom)
Dimensions
Width: 17-1/4” (437mm)
Depth: 13-3/4” (350mm)
Height, with feet: 4-1/8” (105mm)
Height, without feet: 3-1/2” (89mm)
Weight
Net: 19 lbs. (8.6 Kg)
Shipping: 26 lbs. (11.8 Kg)
