Krell Phantom III silver Zoom

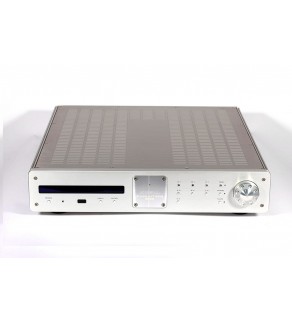

Krell Phantom III silver

Be the first to review this product

SKU: KrellPhantomIII
Krell Phantom III 3 silver with remote, demo, full warranty, never sold , authorized dealers


Phantom III
Inputs
2 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors

Main Outputs
1 pr. balanced via XLR connector
1 pr. single-ended via RCA connector

Headphone Output
1 via 3-conductor 6.35 mm (1.14 inch)

Control Inputs
1 RS-232 input via a 9-pin D-subminiature connector
1 remote IR detector input via a 3-conductor 3.5 mm connector
1 12 VDC trigger input via 3.5 mm connector

Control Outputs
2 individually programmable 12 VDC
trigger outputs via 3.5 mm connectors
Input Impedance
Balanced: 40 k Ohms
Single-ended: 20 k Ohms

Output Impedance
Balanced: 310 Ohms
Single-ended: 155 Ohms
Headphone <3.0 Ohms

Gain
Balanced 12 dB
Single-ended 6 dB
Headphone 5.1 dB with 32 Ohm load

Volume Control
Current-mode, 12-bit, discrete R-2R ladder

Input Overload
>7.0 V RMS balanced or single-ended

Output Overload
Balanced: >16 V RMS
Single-ended: >8 V RMS
Headphone: >3.0 V RMS, 32 Ohm load

Frequency Response
20 Hz to 20 kHz +/- 0.02 dB
0.25 Hz to 1.2 kHz +0, -3 dB
Total Harmonic Distortion Plus Noise
Balanced Output:
<0.003%, 20 Hz to 20 kHz, 4 V RMS or 4 v RMS

Signal to Noise Ratio
>100 dB Wide band, unweighted
>100 dB "A" weighted, both referred to 4 v RMS balanced

Power Consumption
Standby: <2 W
Power on: 40 W

Dimensions
17.25 in.W x 3.8 in. H x 18.25 in. D
43.82 cm W x 9.65 cm H x 46.36 cm D

Weight
Shipped: 38 lbs., 17.2 kg
Preamplifier only: 23 lbs., 10.4 kg

Availability: In stock

$3,650.00
Product Description

    Details

    Krell Phatom III, (Phantom 3) In silver, I can ship this in your desired voltage
