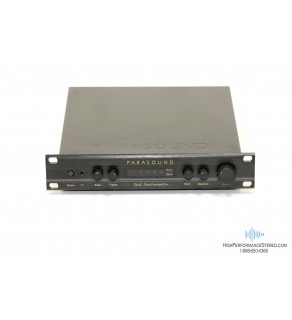

Product Description
Details
Two way RS-232 serial connection
Four line-level audio and four composite video inputs
Input 1 auto select priority function, defeatable
External IR repeater Input jack
Remote control includes discrete codes for Off and On
Switchable auto or manual turn on/off
12 V trigger automatic turn/off, defeats Power button
12V output to trigger other components
Record outputs for video and fixed level audio
Headphone jack, automatically mutes line out
Gold-plated RCA jacks
Analog motor-driven volume control
Outstanding design, parts quality and specs
Voltage switchable between 115v and 230v
Unique half-rack width chassis; 1 rack space high
Frequency Response:
10 Hz - 100 kHz, +0/-3 dB
10 Hz - 50 kHz, +0/-8 dB Frequency Bandwidth - Composite Video:
10 MHz Total Harmonic Distortion:
0.006% S/N Ratio:
112 dB, input shorted, IHF A-weighted
92 dB, input shorted, unweighted Input Impedance:
15 k Ω Input Sensitivity :
150 mV for 1 V output
Maximum Output: 7.6 V Crosstalk:
83 dB at 1 kHz
76 dB at 20 kHz Tone Controls:
Bass +/- 8 dB at 100 Hz
Treble +/- 10 dB at 10 kHz AC Power Requirement:
110 - 120 V / 220 -240 V, 50 - 60 Hz
2 watt standby; 20 watts when turned on Dimensions
8.5" Wide
10" Deep with connectors
2" High with feet, 1.75" panel only
241 x 254 x 50mm, 44.1mm panel only
