Product Description
Details

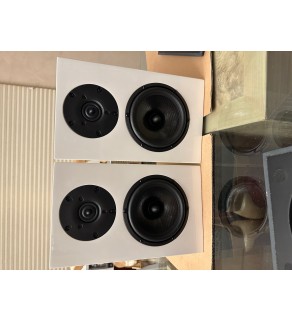

Apertura Swing white or black as of 6/24
DRIVE UNITS
A 16cm mid/woofer with an « isotactic matrix », cone like in Armonia, Edena and their big sisters. This material made of woven polypropylene strips, combines stiffness, lightness and good damping properties.
The long moving coil allows a long linear excursion. Which is quite amazing for a speaker of this size.
This drive unit comes also with an original suspension, featuring radial stiffeners that lower the interferences.
High frequencies are reproduced by a tweeter, member of the famous “Ring Radiator” family.
In addition to its unusual profile, it has a bullet shape waveguide and a rear damping chamber. The result is an extended frequency response, both at the top end (to above 40kHz), and at the bottom end to allow easier coupling with the bass/mid range drive unit.
CROSSOVER
High frequencies are reproduced by a tweeter, member of the famous “Ring Radiator” family.
In addition to its unusual profile, it has a bullet shape waveguide and a rear damping chamber. The result is an extended frequency response, both at the top end (to above 40kHz), and at the bottom end to allow easier coupling with the bass/mid range drive unit.
Proprietary « DRIM » structure with a triple attenuation slopes
This technology cancels intermodulation on each sections of the crossover, which result in unsurpassed clarity and resolution
Same high level component qualities as in Sensa
Each set of drive units (tweeter and mid/woofer) are individually measured and crossover values adjusted according to these measurements sets.
Hand wiring on a 140 µm copper printed circuit board.
Optimized crossover structure to avoid magnetic interference between components
ENCLOSURE
The main goal, with this new cabinet design, was to limit vibration propagation on the most critical panels (especially on the back panel).
High thickness panels (18mm)
Internal dual cavities framework with one bracing panel to stiffen the structure and create very specific areas where damping materials can be applied
Optimized bass reflex loading allowing reproduction of low frequencies, uncommon for such a size speaker.
Importance is given to damping treatment to cancel any standing waves. We are using 2 different types of dumping materials
High Gloss : White
Magnetic grid with invisible fixation
Swing can be set on most of the stands available on the market
