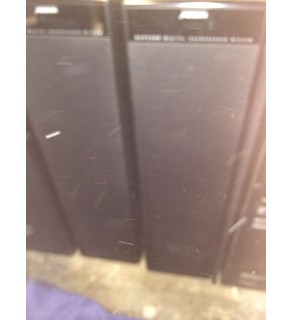

Meridian DSP5500 surround system 24/96 versions 5 speakers (will split) Zoom

Meridian DSP5500 surround system 24/96 versions 5 speakers (will split)

Be the first to review this product

SKU: MeridianDSP5500
Four main DSP5500 speakers and one DSP5500HC center channel.


Specification
Performance: Frequency response in-room within 3dB from 30Hz to over
20kHz.
Output >112dB spl @ 1m on music material.
Noise less than 15dB spl.
Overall distortion typically <0.02% at any frequency or level.
Inputs: Two digital inputs to SPDIF standard; 32kHz–96kHz sampling
rates at up to 24 bit; MHR support. (A future software update
will enable support for 192kHz.)
Construction: 3-way acoustic reflex system.
2 x 200mm long-throw bass drivers.
1 x 160mm polypropylene mid driver in separate enclosure.
1 x 25mm aluminium-dome tweeter, silver wire, short hornloaded
with protective grille.
Cabinet constructed from high-density MDF. Integral magnetic
shielding and user-changeable real wood veneer acoustic
damping side panels.
FIFO memory buffer input for the lowest possible jitter from
almost any source.
Four precision 128x oversampling converters for bass, mid
and tweeter signals
Analogue gain and filtering using proprietary Meridian Class-A
discrete amplification.
Digital and conversion electronics constructed using
advanced surface-mount techniques and partitioned 6-layer
printed-circuit boards.
Four 75W power amplifiers, one for each of the drivers.
Power amplifiers use a unique feedback topology and
precision local error-correction systems to achieve a
performance equivalent to the conversion sys tem.
Dimensions: 1100mm (43.31in) H, 284 (11.2) W, 450 (17.72) D
Weight 81kg (179lbs) each
DSP: 100MHz Motorola digital signal processor.
Digital crossover at 200Hz and 2.6kHz.
Response correction for the whole system.
Controls: Rear-panel controls for Power On/Off.
MSR and RS232 port provide control over bass, treble tilt,
listening axis, volume, time-compensated balance and
absolute phase.
Front display: Eight-character display with system lights, can be blank

Availability: In stock

$6,500.00
Product Description

    Details

    Four main DSP5500 speakers and one DSP5500HC center center channel 24/96 versions $33500 retail total
