Product Description
Details
Specifications

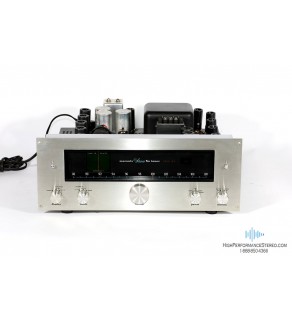

Type: Mono/Stereo Tuner
Tuning Bands: FM
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
Sensitivity: 2.0uV (FM)
Distortion: 0.2% (FM)
Selectivity: 42dB (FM)
Dimensions: 15-3/8 x 5-3/4 x 15 inches
Weight: 38lbs
Finish: gold anodized
FM Tuner:
Gyro Tuning No
RF Sensitivity 2.0 uV
300 Ohm Binding Posts Yes
50 dB quieting sensitivity, Mono 3.0 uV
Ultimate Quieting 70 dB
THD, Mono 0.20%
IF Bandwidth(s) 200 khz
Alternate Channel Selectivity (wide or normal) 150 db
Adjacent Channel Selectivity (Wide or Normal) 042 db
Spurious Rejection 100 db
AM Carrier Rejection 70 db at 80% modulation
Stereo Separation at 1 kHz 45 dB
Mono Switch Yes
Multiplex Filter (Hi-Blend) Yes
Stereo Lamp Yes
FM Mode Lamp Panel Dimmer
Muting Switch Yes
Oscilloscope Yes
Scope Tube Tungsram DG7/32
Scope External Audio Display Capability Yes
Scope Internal Audfio Display Capability Yes
Scope Tuning Indication Yes
Scope Multipath Indication Yes
