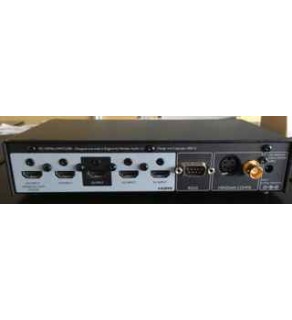

Meridian 421 HD MAX switcher Zoom

Meridian 421 HD MAX switcher

Be the first to review this product

SKU: Meridian421
good cosmetics
The 421 Switch can be controlled in several
ways. For direct use, a front-panel button allows
the users to step through the inputs. LEDs
indicate which input is selected.
For serial control, a 9600 baud serial port is provided,
allowing interfacing via RS232 command.
In addition, sources may be assigned to different
inputs, eg Cable = input 1, etc. This allows
the unit to be controlled via Meridian Comms
(DIN or BNC) so as to select the correct input
automatically when a source is selected in a
Meridian system. A G12 infrared sensor may be
connected via a Comms port for infrared remote
control capabilities. In this case the sources on
the remote are assigned to the following default
Input MSR MSR+
4 Radio Radio
3 LP Aux
1 Tape1 Tape
2 Tape2 Sat
3 CDR Disc
3 Cable Cable
1 LD Game
Input assignment can also be carried out in the
Meridian configuration application.
Switcher Input 4 automatically senses the presence
of a Meridian DVD-Audio/Video player,
making a range of additional options available
in the player’s on-screen display allowing video
sources to be assigned to the other Switcher
inputs. (Player firmware revision 1.93 or later required.)
The 421 front panel button is automatically
locked out when controlled by a player, to
avoid inadvertent operation.
The 421 Switch includes indicators corresponding
to each input to show which is currently
selected. The selected input indicator comes on
solidly when an HDMI input is valid, and flashes
when invalid. The unit is powered by a separate
universal voltage supply or any DC supply from
6 to 15V, at under 3W. The rubber feet may be
removed to reveal holes for permanent installation
– mounting plates and screws provided.
Both the 121 Extender and 421 Switch pass
both HDMI audio and video and are completely
transparent to handshaking, control and data
signals, with extremely high band

Availability: In stock

Product Description


    HDMI switcher
