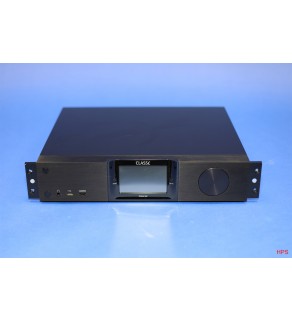

Classe Sigma SSP surround processor two available as of 2/21
The Sigma SSP is a 7.1 channel preamp/processor optimized for stereo but including HDMI switching, multichannel processing and bass management. Its wide variety of input connectors includes asynchronous USB and Ethernet for streaming, augmented by coax and optical; balanced and single-ended analog inputs plus an optional phono stage show how versatile this preamp/processor is despite its compact size. A host of performance-oriented features including digital domain tone/tilt control, and nine-band per channel parametric EQ ensure the best performance with each recording in every room.
Product Info Sheet
Sigma SSP - Product Info Sheet - English
Specifications
Details
USB audio
up to 24-bit/192 kHz
USB (Host)
charging capability 2 Amps
AirPlay supported
formats
AAC (8 to 320 kbps)
Protected AAC (from iTunes Store),
HE-AAC, MP3 (8 to 320 kbps),
MP3 VBR, Audible (formats 2, 3, 4)
Audible Enhanced Audio (AAX, and AAX+),
Apple Lossless, AIFF, and WAV
DLNA supported
formats
Apple Lossless (ALAC), mp3, FLAC,
WAV, Ogg Vorbis, WMA, AAC
Frequency response
8 Hz - 200 kHz < 1 dB, stereo digital bypass
8 Hz - 20 kHz < 0.5 dB, all other sources
Channel Matching
(Left to Right)
better than 0.05 dB
Distortion (THD+noise)
0.0005%, digital source/bypassed
analog source
.002%, processed analog source
Maximum input level
(single-ended)
2 Vrms (DSP), 4.5Vrms (bypass)
Maximum input level
(balanced)
4 Vrms (DSP), 9 Vrms (bypass)
Maximum output level
(single-ended)
9 Vrms
Maximum output level
(balanced)
18 Vrms
Gain Range
-93 dB to +14 dB
Input impedance
(single-ended)
100 kΩ (single-ended)
Input impedance
(balanced)
50 kΩ (Balanced)
Output impedance
(single-ended)
100 Ω
Output impedance
(balanced)
300 Ω
Signal-to-noise ratio
(ref. 4Vrms input, unweighted)
104 dB, bypassed analog source
101 dB, processed analog source
(re. full-scale input, unweighted)
105 dB, digital source
Channel separation
better than 100 dB
Channel matching
(left to right)
>0.05 dB
Crosstalk
(any input to any output)
better than -130 dB @ 1 kHz
Rated power consumption
35 W
Mains voltage
100-240 V, 50/60 Hz
Overall dimensions
17.0" (433mm)
Depth (excluding connectors): 14.57" (370mm)
Height: 3.75" (95mm)
Net weight
18 lb (8.21 kg)
Shipping weight
25 lb (11.34 kg)
Made for
iPod touch (5th generation) iPod nano (7th generation)
iPod touch (4th generation) iPod nano (6th generation)
iPod touch (3rd generation) iPod nano (5th generation)
iPod touch (2nd generation) iPod nano (4th generation)
iPod touch (1st generation) iPod nano (3rd generation)
Made for
iPhone 5S iPhone 3GS
iPhone 5 iPhone 3G
iPhone 4S iPhone
iPhone 4
Made for
iPad mini (with Retina display) iPad (3rd generation)
iPad Air iPad 2
iPad (4th generation) iPad
iPad mini
Airplay
AirPlay works with iPhone, iPod, and iPod touch with iOS 4.3.3 or later,
Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later.
